SAYLOR-BEALL
SAYLOR-BEALL- CLIMATE CONTROL AIR COMPRESSORS/ Duplex Units-Tank Mounted
SAYLOR-BEALL- CLIMATE CONTROL AIR COMPRESSORS/ Duplex Units-Tank Mounted
Couldn't load pickup availability

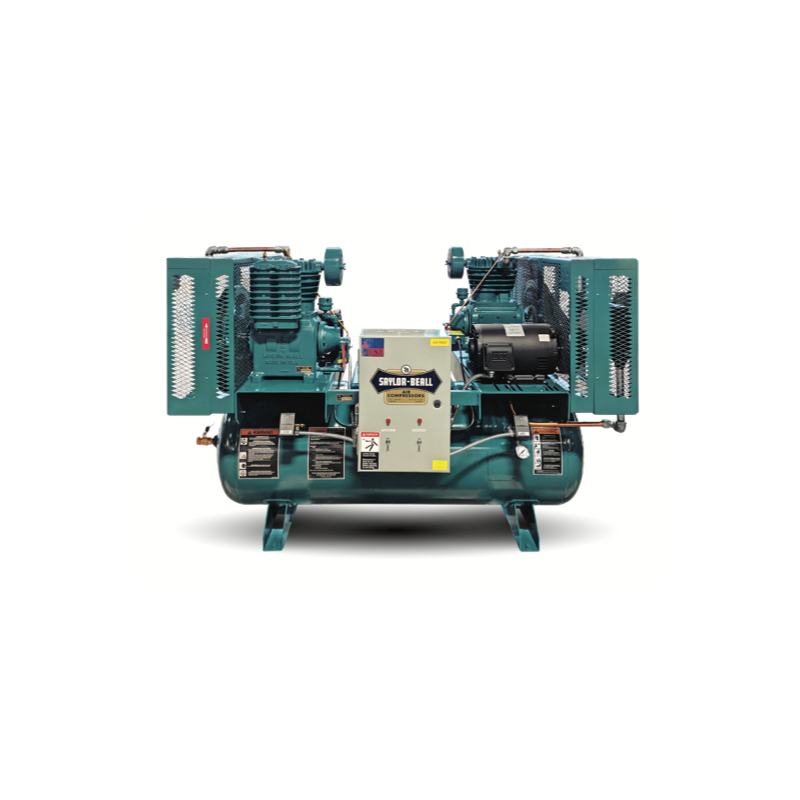

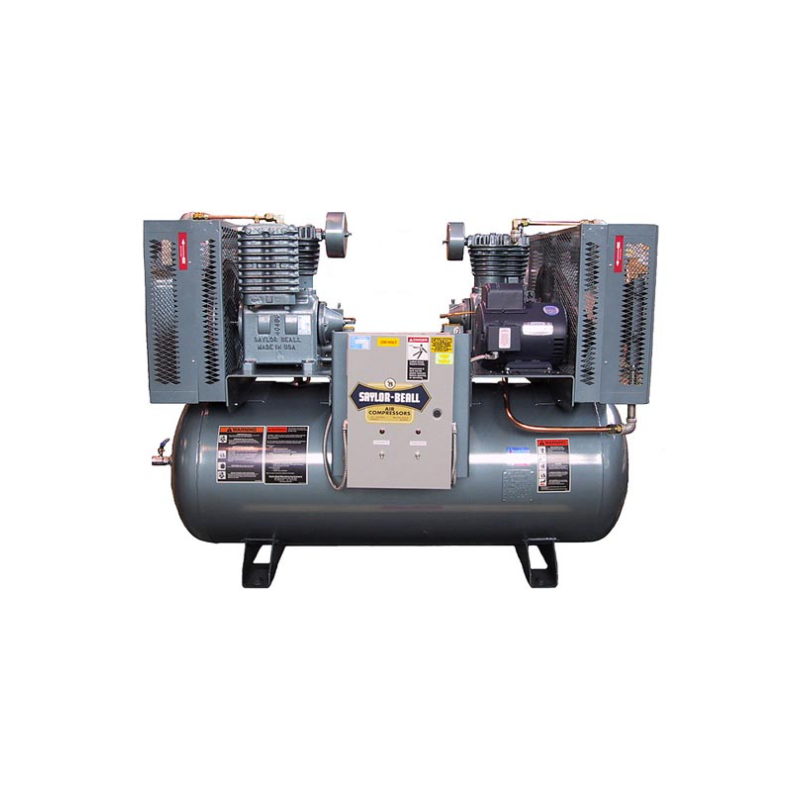

SAYLOR-BEALL CLIMATE CONTROL PISTON AIR COMPRESSORS
Modern pneumatically operated climate and instrument control systems demand the very best from a compressed air supply. Saylor-Beall’s many years of compressor experience has resulted in a line of climate control air compressors that meet the high levels of performance and quality customers have come to expect. Saylor-Beall Climate Control air compressors provide the reliable, efficient and economical operation needed to keep pneumatic systems operating at peak performance.
Every Saylor-Beall compressor has cast iron industrial quality construction giving longer compressor life; high operating efficiency (cfm/hp) resulting in lower utility costs; and easily serviced design reducing maintenance costs over time.
SINGLE-STAGE PUMP SPECIFICATIONS
• Cast iron construction
• Disc type valves
• High flow flywheel
• Three piston rings for low oil carryover
• Automotive type insert bearings at the crankshaft • Intake air filter/Silencer
TWO-STAGE PUMP SPECIFICATIONS
-
Cast iron construction
-
Disc type valves accessible without
removing the head
-
Needle bearings at the wrist pin
-
Automotive type insert bearings at the
crankshaft.
-
Four piston rings for low oil carry over.
-
Over-sized tapered roller main bearing
-
High flow flywheel.
-
Crankcase side plate for easy access to
the crankcase
-
Intake air filter/silencer
-
Cast iron inter-cooler with safety valve

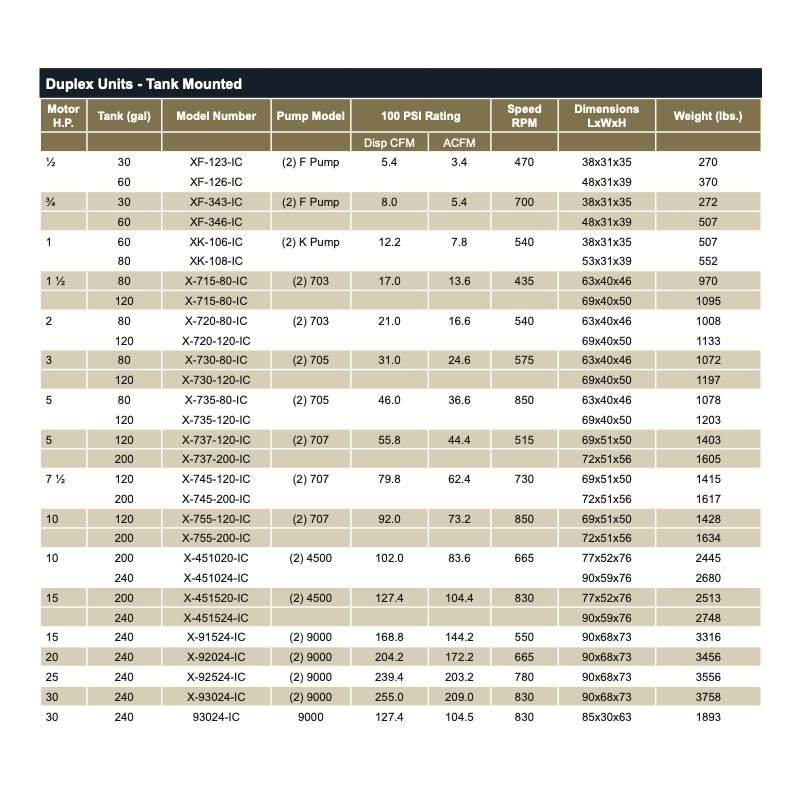

DUPLEX SPECIFICATIONS
-
ASME code air receiver
-
ASME receiver safety valve
-
OSHA totally enclosed belt guards (2)
-
NEMA electric motors (2)
-
NEMA pressure switches (2) - (set for 80-100 psi operation)
-
Receiver pressure gauge
-
Alternating control panel with magnetic starters (factory
mounted and wired)
-
Receiver outlet valve
- Full oil pressure lubrication
- Magnetic starters
- Low oil level shutdown
- Automatic tank drain
- Quiet intake filters
- Belt guard mounted, fan cooled after- cooler
- Refrigerated air dryers
- Desiccant air dryers
- Water separator filters
- Coalescing compressed air filters
- Carbon activated, oil vapor adsorbing compressed air filters
- Tank vibration isolators
- Flex outlet hose
PRODUCT LINE
COMPRESSORS- Splash Lube Air Compressors
- Pressure Lube Air Compressors
- Duplex Compressors
- Performance Packages
- Engine Driven Compressors
- Oilless Compressors
- Rotary Screw Air Compressors
- CD & CDD Compressor Packages
- Two Stage Air Compressors
- SBD Series Dryers
- SBR/HR Series Dryers
