SAYLOR-BEALL

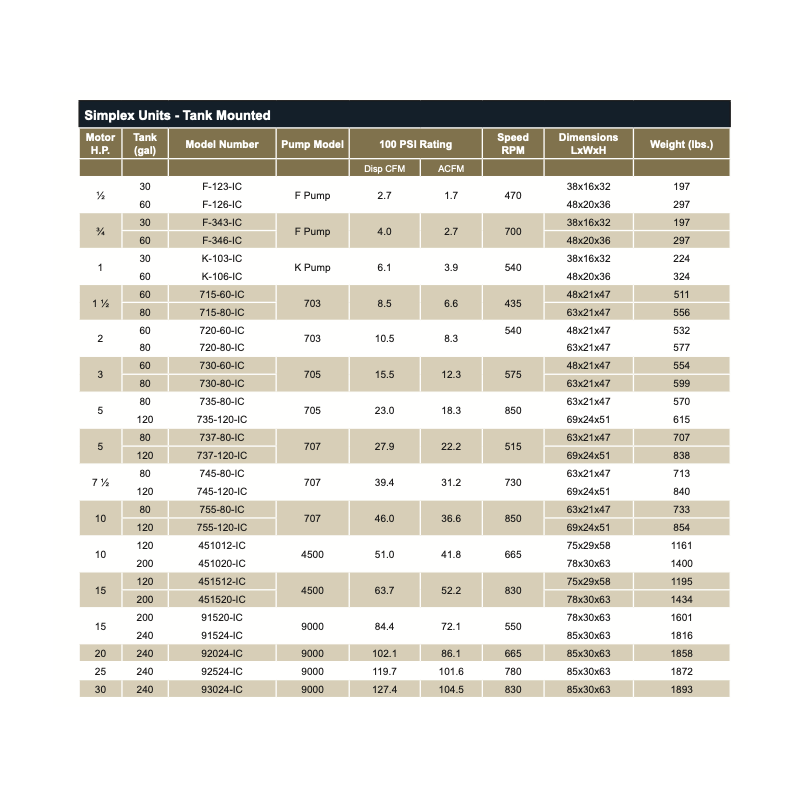

SAYLOR-BEALL- CLIMATE CONTROL AIR COMPRESSORS/ Simplex Units-Tank Mounted

SAYLOR-BEALL- CLIMATE CONTROL AIR COMPRESSORS/ Simplex Units-Tank Mounted

HP
Tank Size

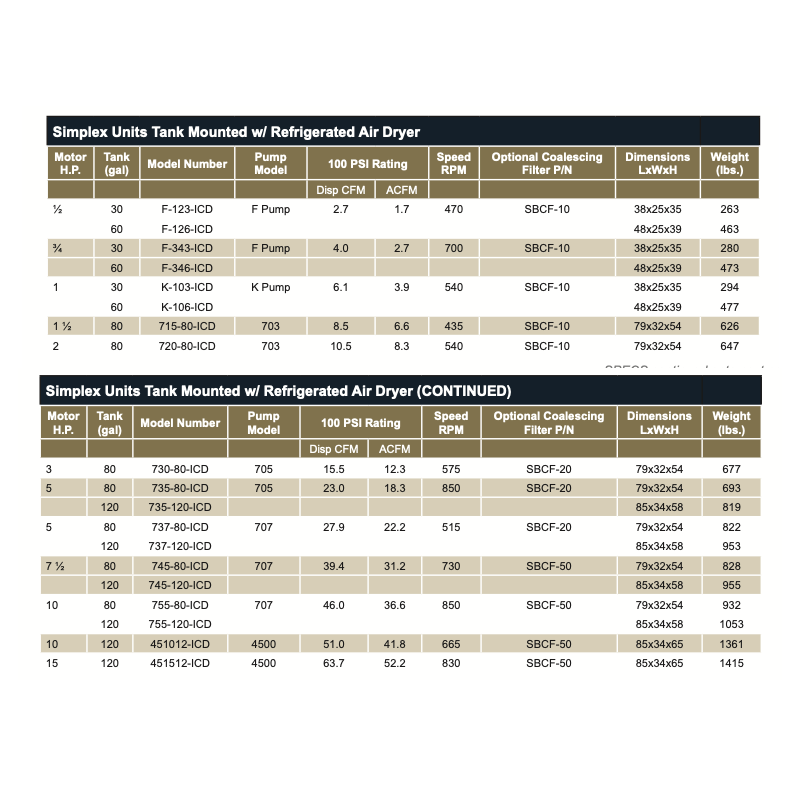

Refrigerated Air Dryer

SAYLOR-BEALL CLIMATE CONTROL PISTON AIR COMPRESSORS

Modern pneumatically operated climate and instrument control systems demand the very best from a compressed air supply. Saylor-Beall’s many years of compressor experience has resulted in a line of climate control air compressors that meet the high levels of performance and quality customers have come to expect. Saylor-Beall Climate Control air compressors provide the reliable, efficient and economical operation needed to keep pneumatic systems operating at peak performance.

Every Saylor-Beall compressor has cast iron industrial quality construction giving longer compressor life; high operating efficiency (cfm/hp) resulting in lower utility costs; and easily serviced design reducing maintenance costs over time.

SINGLE-STAGE PUMP SPECIFICATIONS

• Cast iron construction
• Disc type valves
• High flow flywheel
• Three piston rings for low oil carryover
• Automotive type insert bearings at the crankshaft • Intake air filter/Silencer

TWO-STAGE PUMP SPECIFICATIONS

  • Cast iron construction

  • Disc type valves accessible without

    removing the head

  • Needle bearings at the wrist pin

  • Automotive type insert bearings at the

    crankshaft.

  • Four piston rings for low oil carry over.

  • Over-sized tapered roller main bearing

  • High flow flywheel.

  • Crankcase side plate for easy access to

    the crankcase

  • Intake air filter/silencer

  • Cast iron inter-cooler with safety valve



SIMPLEX SPECIFICATIONS

  • ASME code air receiver

  • ASME receiver safety valve

  • OSHA totally enclosed belt guard

  • NEMA electric motor

    NEMA pressure switch (set for 80-100 psi

    operation)

  • Receiver pressure gauge

  • Receiver outlet valve

Supplying reliable, efficient and economical compressed air



To meet the special needs of climate and instrument control applications Saylor-Beall Climate Control air compressors achieve low oil carry-over through slow operating RPM, tightly controlled cylinder tolerances and special ring design.

Saylor-Beall’s dedication to customer satisfaction continues after the sale. Every product that carries the Saylor-Beall name comes with the full support of an experienced air compressor company. Saylor-Beall stands behind every unit with service and technical support. A large network of distributors throughout the United States and Canada assures convenient service and parts availability.


OPTIONS



  • Full oil pressure lubrication
  • Magnetic starters
  • Low oil level shutdown
  • Automatic tank drain
  • Quiet intake filters
  • Belt guard mounted, fan cooled after- cooler
  • Refrigerated air dryers
  • Desiccant air dryers
  • Water separator filters
  • Coalescing compressed air filters
  • Carbon activated, oil vapor adsorbing compressed air filters
  • Tank vibration isolators
  • Flex outlet hose





PRODUCT LINE

COMPRESSORS
  • Splash Lube Air Compressors
  • Pressure Lube Air Compressors
  • Duplex Compressors
  • Performance Packages
  • Engine Driven Compressors
  • Oilless Compressors
  • Rotary Screw Air Compressors
  • CD & CDD Compressor Packages
  • Two Stage Air Compressors
DRYERS
  • SBD Series Dryers
  • SBR/HR Series Dryers
