Altec Air

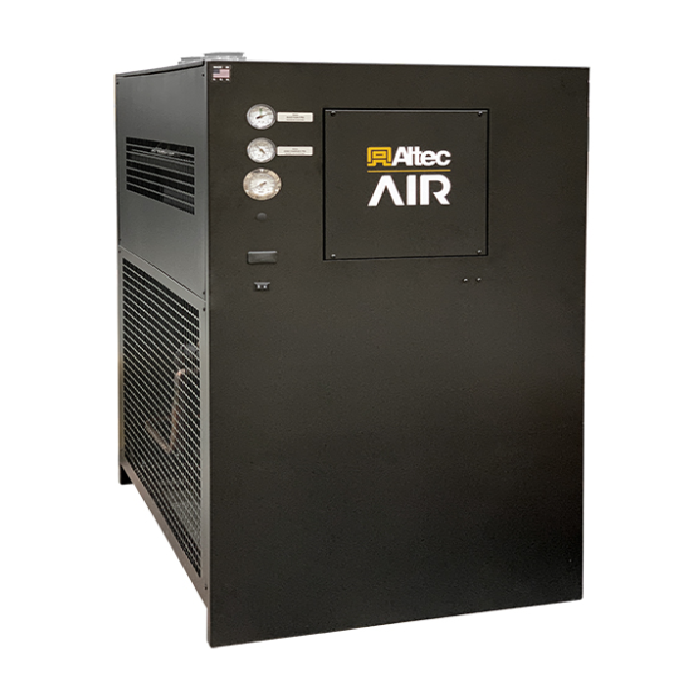

DX Series Energy Saving Air Dryers

DX Series Energy Saving Air Dryers

Capacity

The DX Series Refrigerated Air Dryers were developed with the ability to match their power consumption in direct proportion to the current heat load of the air dryer.

  • Consistent & Reliable Dry Air - ISO Class 4 - 5
  • Digital Scroll Energy-Saving Refrigeration Compressor
  • Capacity Modulation Control Reduces Power Consumption up to 90%
  • Compact All-Aluminum Heat Exchanger Modules with Low Pressure Drops
  • Programmable Automatic Electronic Drains
  • Easy-Access Cabinet Design for Ease of Maintenance & Serviceability

FILES & LITERATURE:

  1. Specifications Sheet
  2. Refrigerated Air Dryers Brochure
  3. Industrial Products Brochure

STANDARD FEATURES:

  • Available Input Voltages*
    • 208-230 VAC, 1 Phase, 60Hz
    • 230 VAC, 3 Phase, 60Hz
    • 460 VAC, 3 Phase, 60Hz
    • 575 VAC, 3 Phase, 60Hz
  • Maximum Pressure - 232 PSIG
  • Maximum Inlet Temperature - 120°F / 49°C

OPTIONAL FEATURES:

  • Air-Pac Filter Kits
  • Bypass Valve
  • Ambient Air Filter
